Description

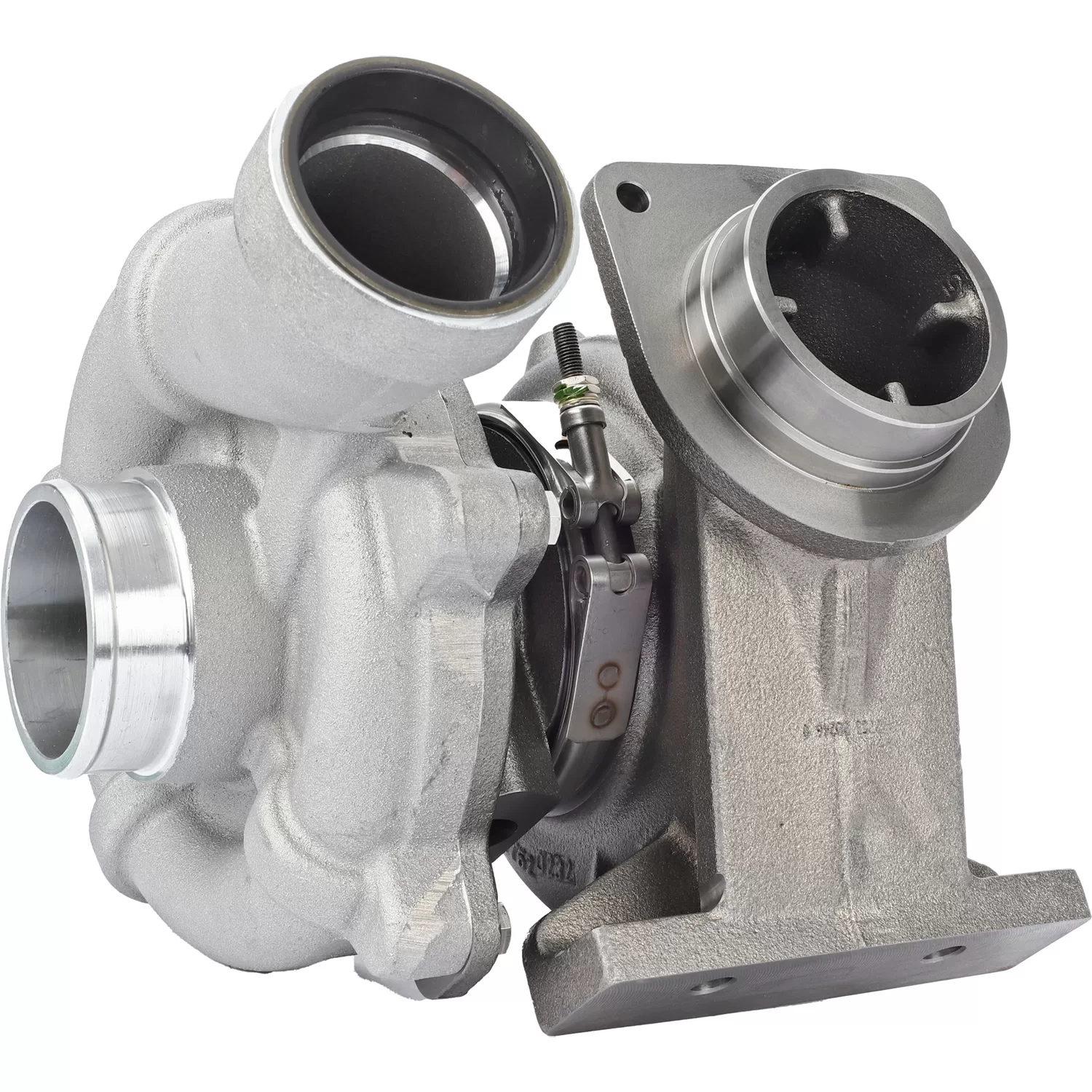

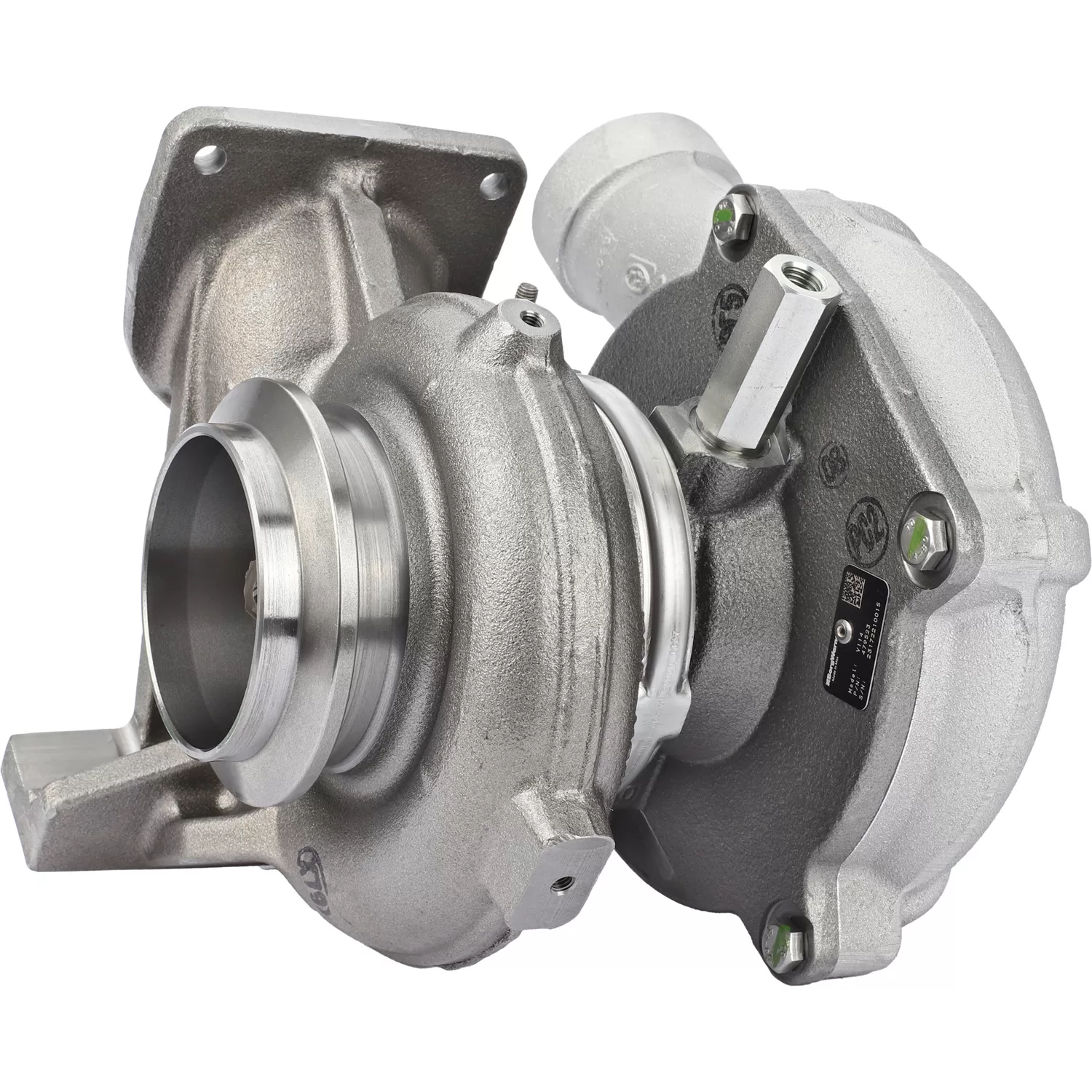

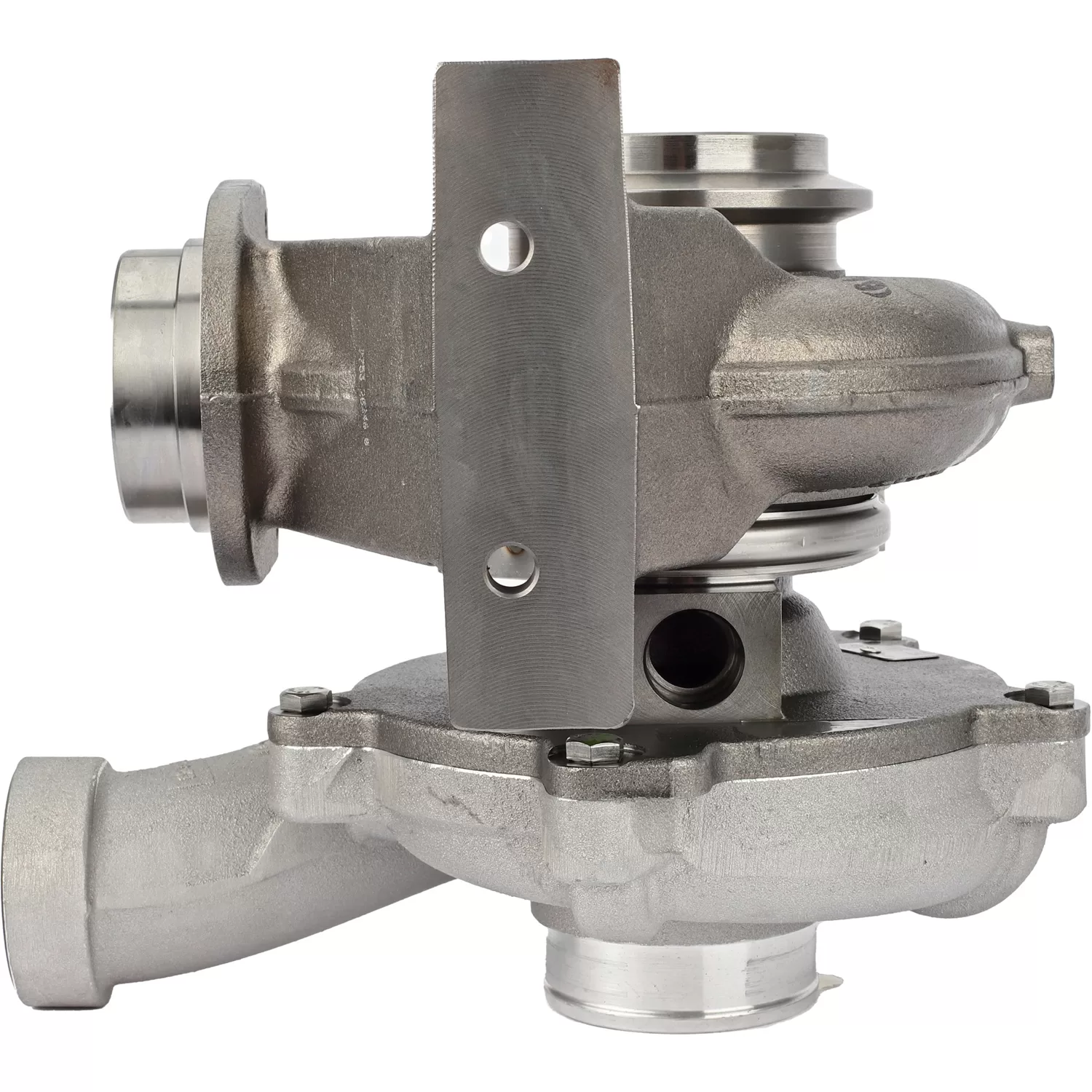

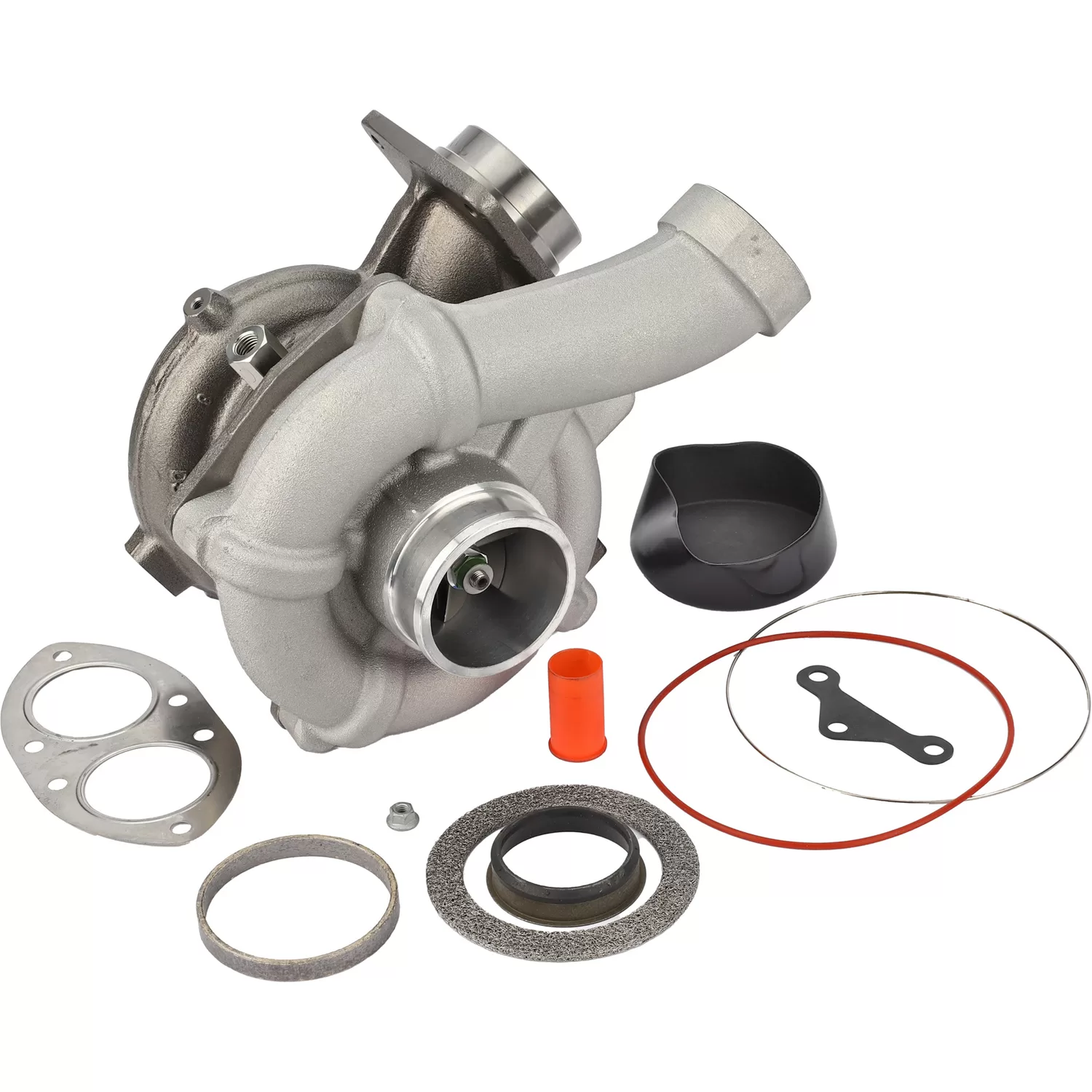

2008-2010 Ford 6.4L Power Stroke Diesel Low Pressure Turbocharger BorgWarner 479523

BorgWarner part number 479523 is a remanufactured low pressure turbocharger for 2008-2010 Ford trucks with 6.4L Power Stroke diesel engines.

Common turbocharger problems in the 6.4L PowerStroke diesel arise from its complex sequential (compound) turbo design, often accelerated by issues with oil quality, emissions systems, and electronic controls.  The sequential turbo system uses a high-pressure (small) and low-pressure (large) turbo, which provides excellent power when working properly, but due to its complexity, it increases potential failure points.  Turbo actuator failure (P132B/P2563 Codes) is a common issue.  The actuator is the electronic controller for the variable-geometry turbo (VGT) vanes.  The actuator often fails due to broken internal plastic gears, resulting in low boost, erratic boost, or “limp mode”.  Oil dilution and contamination from the Diesel Particulate Filter (DPF) regeneration process can cause diesel fuel that was intended to go into the exhaust system to leak past the piston rings and into the crankcase, contaminating the engine oil.  This thinned oil cannot properly lubricate the high-speed turbo bearings, leading to premature bearing failure, shaft play, and oil seal failures.  Excessive soot from the EGR system can cause the variable-geometry vanes on the high-pressure turbo to stick, causing erratic boost pressures and sluggish performance.  A high-pitched, siren-like whine or squeal noise is often an early sign that the turbocharger compressor wheel is rubbing against the housing or that bearings are failing, which can result in catastrophic failure where the turbos break apart.

Due to high mileage or problems listed above, it is typically wise to replace both the high pressure and low pressure turbochargers at the same time.  This BorgWarner turbo assembly has all the latest updates and is built to original equipment specifications.  The labor time to change the turbos on this application is 15 hours.  Replacing the whole assembly the first time saves a second costly repair if you only change the high pressure or low pressure turbo separately.  This part number includes only the low pressure turbo.

Features:

• Innovative Design: Cutting-edge technology tailored to enhance driving experiences.
• Long-lasting Performance: Built to endure tough conditions and deliver reliable results over time.
• Cost-effective Efficiency: Helps reduce maintenance costs while improving overall performance.
• Guarantee fitment: A fit, form, and function test has been performed to ensure that the product meets and/or exceeds original equipment standards.
• Enhanced Vehicle Efficiency: Boosts engine performance and ensures optimal fuel usage.
• Trusted Reliability: Rigorously tested to meet industry standards for consistent, dependable use.
• Durability and Longevity: Built with premium materials to withstand extreme conditions and provide long-lasting reliability.

Applications:

• Ford F-250 Super Duty (2008-2010)
• Ford F-350 Super Duty (2008-2010)
• Ford F-450 Super Duty (2008-2010)
• Ford F-550 Super Duty (2008-2010)

BorgWarner is a global automotive supplier that designs and manufactures systems for the transportation industry. The company develops future-drive technologies for automotive manufacturers worldwide and provides innovative products such as spare parts.  Reliability is a key focus for BorgWarner, and their re-manufacturing program maintains outstanding original equipment (OE) quality.

Cross-Reference Numbers:

100TBC559S
1080239R
1700700354
170-070-0354
1700702139
170-070-2139
176013
177100
177100R
179523
179523R
1848301C1
2T221
2T-221
4307201R1
477100
479523
667274
667-274
8299299536
829-929-9536
8661PP
8661-PP
8C3Z6K682A
8C3Z-6K682-A
8C3Z6K682AA
8C3Z6K682AARM
8C3Z-6K682-AARM
BBBD1002
D1002
DA2251339
S1640101N
S8640101R
TBC559
TBC693
TC11RM
TC-11-RM
TC11-RM
TS179523
TUR0264101N
TUR0264201R
