Description

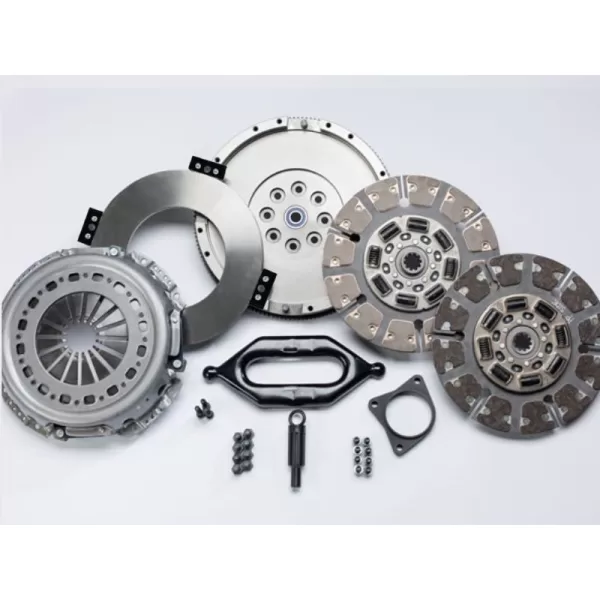

1994-2004 Dodge 5.9L Cummins Diesel Street Dual Disc Clutch Kit SDD3250-5

1994-2004 Dodge 5.9L Cummins 550-650 HP / 1300 Torque Street Dual Disk Clutch & Flywheel Kit NV4500 / Non-HO NV5600 Transmission

1999-2000 Dodge Cummins (Non HO) 550-650 HP / 1300 Torque Street Dual Disk Clutch & Flywheel Kit NV4500 / Non-HO NV5600 Transmission

South Bend Clutch heard the call for the organic dual-disc clutch but wanted to offer the best in both durability and drive-ability. How did they achieve that? In their 50 years of experience, they knew that running an all-organic dual disc would have its problems. The intermediate (center) plate is approximately ½” thick whereas the pressure plate and flywheel castings are three times that. Running two friction surfaces on one thin casting will increase the temperature of that casting. Organic burn point is approximately 550 degrees, whereas ceramic can reach 1100 degrees. The immediate engagement points when the clutch is released for takeoff are the outside points of a dual disc clutch, pressure plate and flywheel. Being that there is only one friction surface running to these two points, and the fact that the pressure plate and flywheel castings are much thicker than the center plate, the temperatures cannot reach that of the center plate. This is why organic will work on the pressure plate and flywheel and not on the center plate.

The street dual disk is intended for street use only. This is not a competition, drag race or sled pulling clutch. This is for the person who is running serious horsepower in the 550 – 650 range and wants to pull 30,000 pounds if they want.

If you are looking for something in between this clutch and an all-out competition clutch, give South Bend Clutch a call.  A high-power daily driven truck, that competes once in a great while on the weekend, clutch can be built. If you pull consistently, you need a competition setup, period.

SBC # SDD3250-5; 650HP 1300 TRQ 30k+ TOWING CAPACITY
