2013-2023 6.7 ACTUATOR

Description

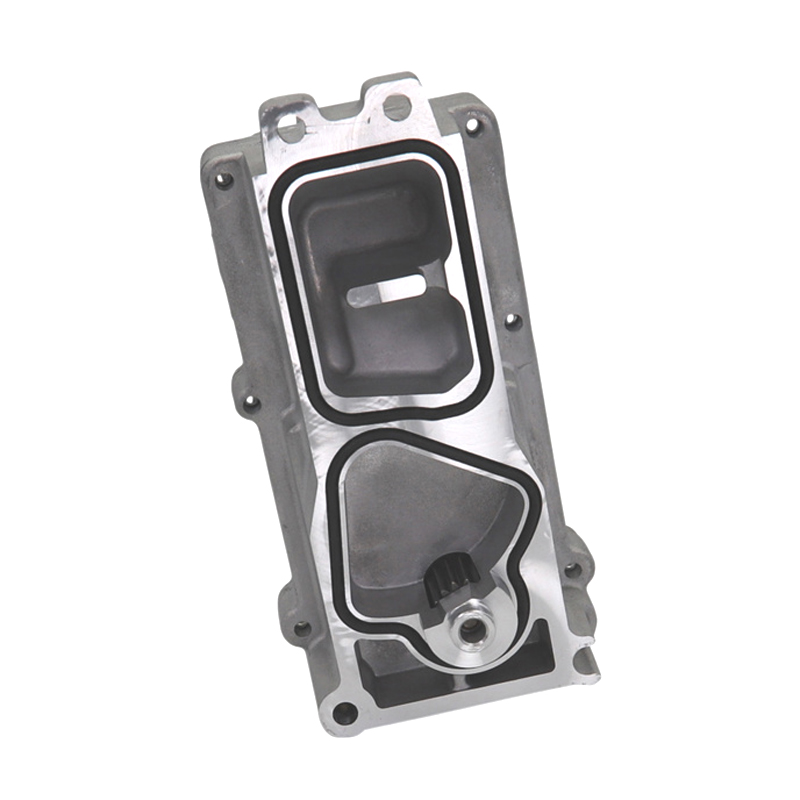

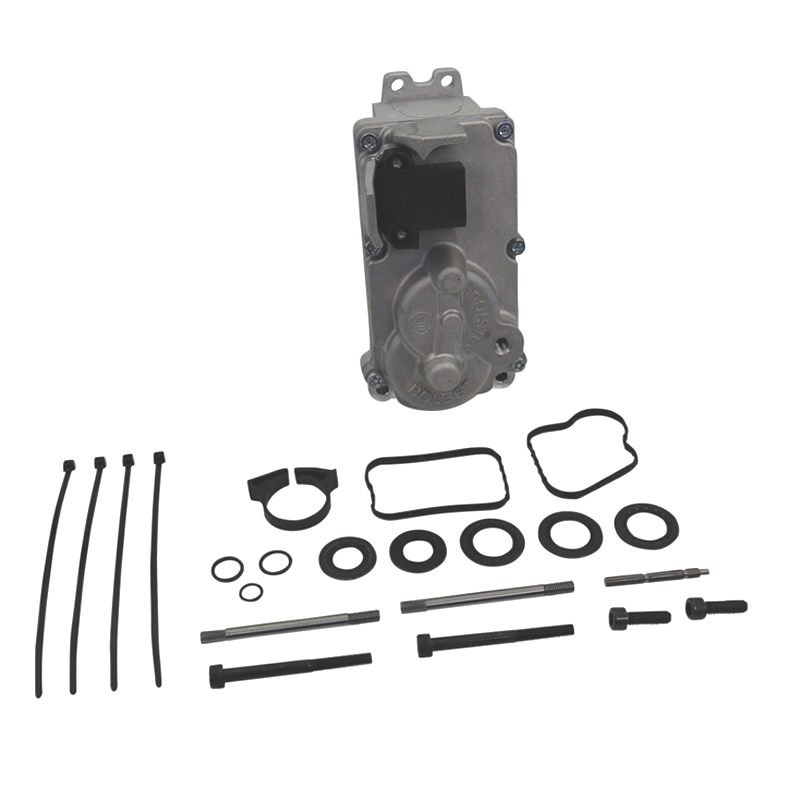

2013-2023 Dodge Ram 6.7L Cummins Turbocharger Actuator Holset 6382096HX

This is a remanufactured variable vane turbocharger actuator for 2013-2023 Dodge Ram trucks with the 6.7L Cummins diesel engine.  Holset is a leader in the turbocharger industry and producer of the VGT™ from Cummins Turbo Technologies.   Variable Geometry (VG) technology for the commercial vehicles use a sliding nozzle ring to produce quick turbo spool up and high flow rates all in the same housing.  The precise movement of the vanes is controlled by an electronic actuator.  Actuators can be replaced separately saving time and expense of replacing a complete turbo assembly if the linkage the actuator connects to is freely moving inside the turbocharger.  If the linkage is stuck, that is the most likely reason the actuator went bad.  If the linkage is not freely moving a turbocharger assembly is required.

Note:  Upon installation, a compatible scan tool is required to relearn the actuator movement and place the actuator in the proper position prior to bolting up to the turbo.

Core Charges

This part requires an acceptable matching rebuildable core be sent in to avoid paying the core charges.  Worn out advance piston housings that can not be machined to accept available larger piston sizes will result in a reduction of the core charge refund.

With Core Option = Means you will pay the core charge up front, and when an acceptable core is returned to Huckstorf Diesel the core charge will be refunded back to you.  An acceptable matching core must be received within 30 days of the ship date to receive full core credit.

Without Core Option = An acceptable matching core must be received before the exchange is sent out.

An acceptable core is one that is rebuildable with typical replacement parts.  Major damage such as rust, housing damage, critical broken parts will be cause for partial or no core refund.  If you have any questions on this policy please call or send your pump in first for inspection.  Normally a pump that comes off a running engine in need of typical repairs is fine.  Pumps that sat for years in junk yards, fire damaged, collision damaged, etc. may not be accepted.

Cross Reference Numbers:

1700320095
170-032-0095
1700320115
170-032-0115
3773938
3773942
3778619
3778623
3784299
3784386
3785180
3788936
4034090
4034090NX
4034168
4034168NX
4034309
403430900
403430900H
403430900HX
4034309H
4034309HX
4034309NX
4034394
4034395
4633444
5452689
5459882
5459882NX
5459882RX
5494878
549487800H
549487800HX
5494878H
5494878HX
5494878NX
5494878RX
5498269
549826900H
549826900HX
5498269H
5498269HX
5498269NX
5498269RX
5555542
5571927H
5579127
5579127H
5579127HX
5579157
5601240
560124000H
560124000HX
5601240H
5601240HX
5601240KX
5601240NX
5601240RX
5601540H
5601540HX
6374774
6374774H
6374774HX
6374774RX
6382096
6382096H
6382096HX
6382096RX
6498269RX
68232771
68232771AA
68244609
68244609AA
68307025
68307025AA
68444773AA
68445522AA
68481772AA
AP63587
NHA8269
NHA8296
R68444773AA
R84444773AA
R8444773AA
R8481772AA
RHA1240
RHA8269
