2001-2005.5 Dodge 5.9L Cummins Diesel 550-650 HP / 1300 Torque Street Dual Disc Clutch & Flywheel Kit NV5600 Transmission South Bend Clutch SDD3250-6

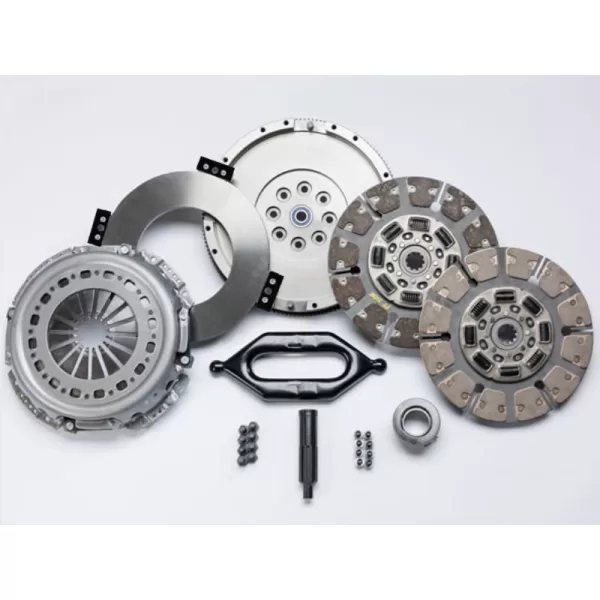

South Bend Clutch part number SDD3250-6 is a street performance dual disc clutch and flywheel upgrade kit for 2001-2005 Dodge trucks with the 5.9L Cummins diesel engine and NV5600 manual transmission.
![]() |
![]() |
South Bend Clutch heard the call for the organic dual-disc clutch but wanted to offer the best in both durability and drive-ability. How did they achieve that? In their 50 years of experience, they knew that running an all-organic dual disc would have it’s problems. The intermediate (center) plate is approximately ½” thick whereas the pressure plate and flywheel castings are three times that. Running two friction surfaces on one thin casting will increase the temperature of that casting. Organic burn point is approximately 550 degrees, whereas ceramic can reach 1100 degrees. The immediate engagement points when the clutch is released for takeoff are the outside points of a dual disc clutch, pressure plate and flywheel. Being that there is only one friction surface running to these two points, and the fact that the pressure plate and flywheel castings are much thicker than the center plate, the temperatures cannot reach that of the center plate. This is why organic will work on the pressure plate and flywheel and not on the center plate.
The street dual disk is intended for street use only. This is not a competition, drag race or sled pulling clutch. This is for the person who is running serious horsepower in the 550 – 650 range and wants to pull 30,000 pounds if they want.
If you are looking for something in between this clutch and an all-out competition clutch, give South Bend Clutch a call. A high-power daily driven truck that competes once in a great while on the weekend style of clutch can be built. If you pull consistently, you need a competition setup, period.
SDD3250-6 —– Half Organic Half Ceramic Non-Sfi Approved Street Dual Disc 650 Hp 1300 ft-lbs Trq Rated For Towing 30K plus. NOT recommended for stock applications. !!!! NOT FOR COMPETITION USE !!!!!!
If we do not have this part in stock, don’t worry. Huckstorf Diesel receives shipments from our suppliers daily. We also have the ability to get parts drop-shipped directly to you from the manufacturer. Let us help you find those hard to find parts.
