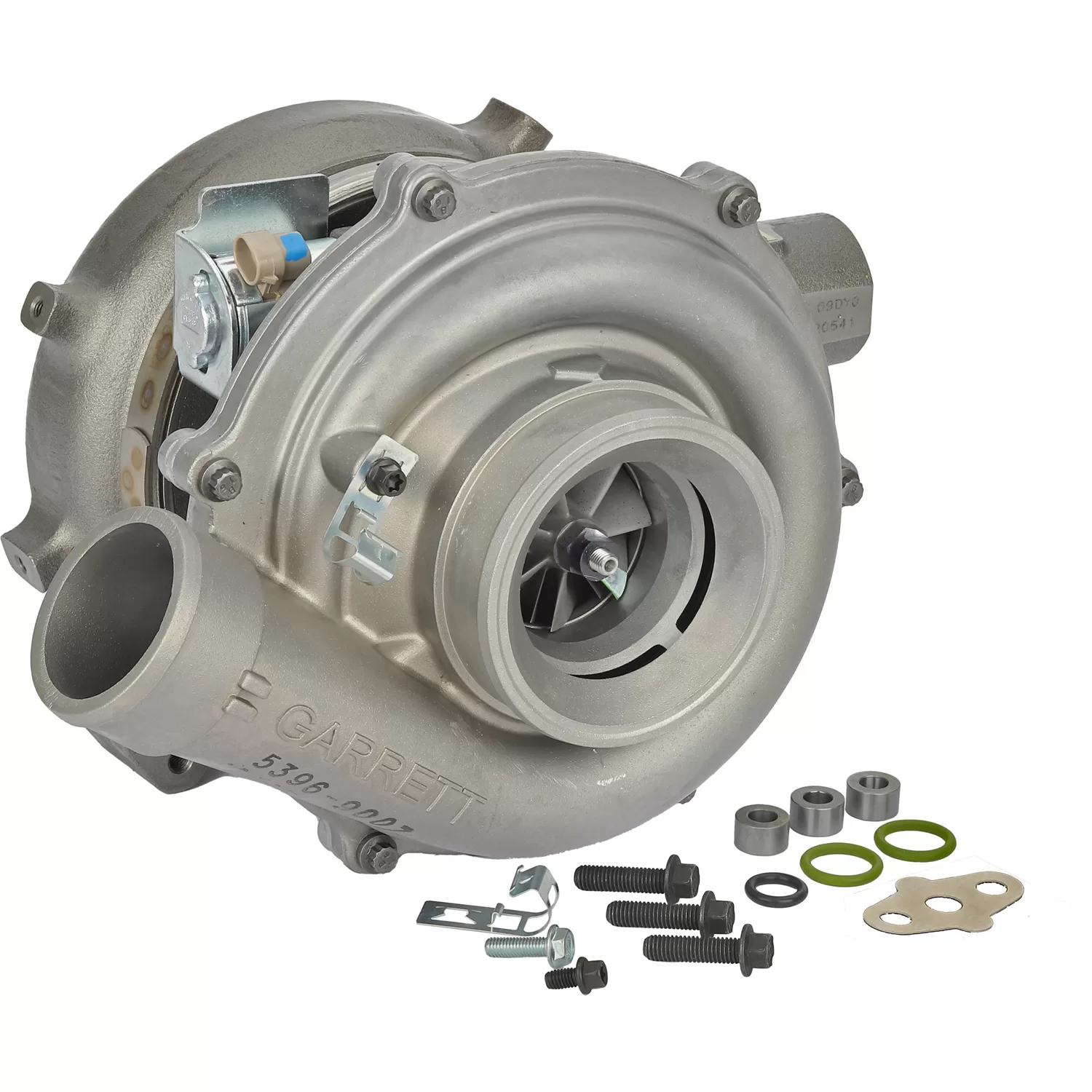

2005.5-2010 Ford 6.0L Power Stroke Diesel Remanufactured Garrett GT3782VA Turbocharger – 743250-9025S

Garrett part number 743250-9025S is a rebuilt turbocharger for 2005.5-2010 Ford trucks with the 6.0L Power Stroke diesel engines having engine serial numbers 6344933 and higher.

Fits the late 2005 through 2010 Ford 6.0 Diesel Power Stroke engines.  2005 engine serial numbers 6344933 and higher.

The 743250-5024S turbocharger is used on pickup trucks, excursions, and vans with a build date prior to June 2025.  Those turbochargers use a 59.12 / 82 mm compressor wheel and produce a slightly higher peak power.  That wheel is larger than the 56.81 / 82 mm compressor wheel used on this 743250-5025S turbocharger used on the late 2005-2010 6.0L engines.  The change to the wheel was made to reduce surge and improve driving ability.  This turbo and the 743250-5024S can be interchanged back and forth without any need for tuning or hardware problems.

As a world-renowned manufacturer, Garrett has consistently demonstrated its commitment to innovation, precision engineering, and performance excellence. With a rich heritage dating back decades, the company has solidified its reputation as a global leader in turbocharging solutions that power industries ranging from automotive to industrial sectors.

These remanufactured turbos from Garrett for Ford 6.0 Power Stroke diesels are a lower cost option when a new turbo is not in your budget.

• Genuine Garrett brand original equipment replacement unit.
• Contains all the engineering updates for superior durability.
• New VGT Control Valve and mounting gaskets included.

Core Charge Instructions

This part requires an acceptable matching rebuildable core be sent in to avoid paying the core charges.

With Core Option = Means you will pay the core charge up front, and when an acceptable core is returned to Huckstorf Diesel, the core charge will be refunded back to you. An acceptable matching core must be received within 30 days of the ship date to receive full core credit.

Without Core Option = An acceptable matching core must be received before the exchange is sent out.

An acceptable core is one that is rebuildable with typical replacement parts. Major damage such as rust, housing damage, critical broken parts will be a reason for partial or no core refund. If you have any questions about this policy, please call or send your injectors in first for inspection. Normally, an injector that comes off a running engine in need of typical repairs is fine. Injectors that sat for years in junkyards, fire damaged, collision damaged, etc. may not be accepted.

Replaces Navistar Part Numbers:

• 1832255C91
• 1854593C91
• 1858116C91
• 1876493C91
• 1877831C91
• 1879413C91
• 1879413C92
• 1882085C91
• 1882380C2

Replaces Ford Part Numbers:

• 5C349T428AA
• 5C3Z66K682CCRM
• 5C3Z6-6K682-CCRM
• 5C3Z6K682A
• 5C3Z6K682AA
• 5C3Z6K682AARM
• 5C3Z6K682ARM
• 5C3Z6K682BA
• 5C3Z6K682BARM
• 5C3Z6K682CA
• 5C3Z6K682CARM
• 5C3Z6K682CCRM
• 5C3Z-6K682-CCRM
• 5C3Z6K682DA
• 5C3Z6K682DARM

Applications: (Engine serial numbers 6344933 and higher)

• 2005 Ford E-350 Club Wagon Van
• 2005-2010 Ford E-350 Super Duty Van
• 2005-2010 Ford E-450 Super Duty Van
• 2005 Ford Excursion
• 2005-2007 Ford F-250 Super Duty
• 2005-2007 Ford F-350 Super Duty
• 2005-2007 Ford F-450 Super Duty
• 2005-2007 Ford F-550 Super Duty

If we do not have this part in stock, don’t worry. Huckstorf Diesel receives shipments from our suppliers daily. We also have the ability to get parts drop-shipped directly to you from the closest warehouse or the manufacturer. Let us help you find those hard to find parts.

Cross-Reference Numbers:

100TBC512S
100TBC523
100TBC523S
1700250109
170-025-0109
1700251180
170-025-1180
1700251895
170-025-1895
1700702634
170-070-2634
1832255C91
1854593C91
1858116C91
1876493C91
1877831C91
1879413C91
1879413C92
1882085C91
1882380C2
2T206
433518
500491
500492
5010147R91
5010399R91
57739900002
5773-990-0002
5C349T428AA
5C3Z66K682CCRM
5C3Z6-6K682-CCRM
5C3Z6K682A
5C3Z6K682AA
5C3Z6K682AARM
5C3Z6K682ARM
5C3Z6K682BA
5C3Z6K682BARM
5C3Z6K682CA
5C3Z6K682CARM
5C3Z6K682CCRM
5C3Z-6K682-CCRM
5C3Z6K682DA
5C3Z6K682DARM
7355PP
7355-PP
7432500005
743250-0005
7432500014
743250-0014
7432500016
743250-0016
7432500018
743250-0018
7432500021
743250-0021
7432500023
743250-0023
7432500025
743250-0025
7432505005
743250-5005
7432505014
743250-5014
7432505014S
743250-5014S
7432505018
743250-5018
7432505021
743250-5021
7432505023
743250-5023
7432505025
743250-5025
7432505025R
7432505025S
743250-5025S
7432509005
743250-9005
7432509014
743250-9014
7432509018
743250-9018
7432509021
743250-9021
7432509023
743250-9023
7432509025
743250-9025
7432509025S
743250-9025S
8299738103
829-973-8103
8299738819
829-973-8819
A8370103R
AP90002
BBBD1006
D1006
DA2251333
DT5C3Z6K682CCR
DT5C3Z-6K682-CCR
DT600007
TC17RM
TC-17-RM
TC17-RM
TS7432505005
TS743250-5005
TS7432505014
TS743250-5014
TS7432509005R
TS743250-9005R
TS7432509014R
TS743250-9014R
TUR0260203R
