Description

New 2004.5- Early 2005 Ford 6.0L Power Stroke Diesel Garrett GT3782VA Turbocharger 743250-5024S

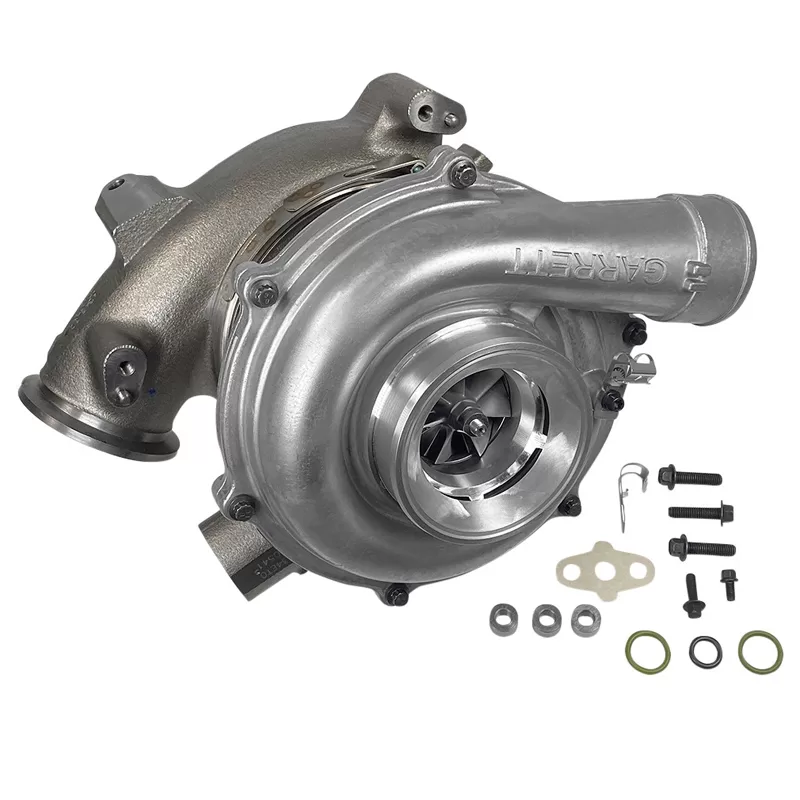

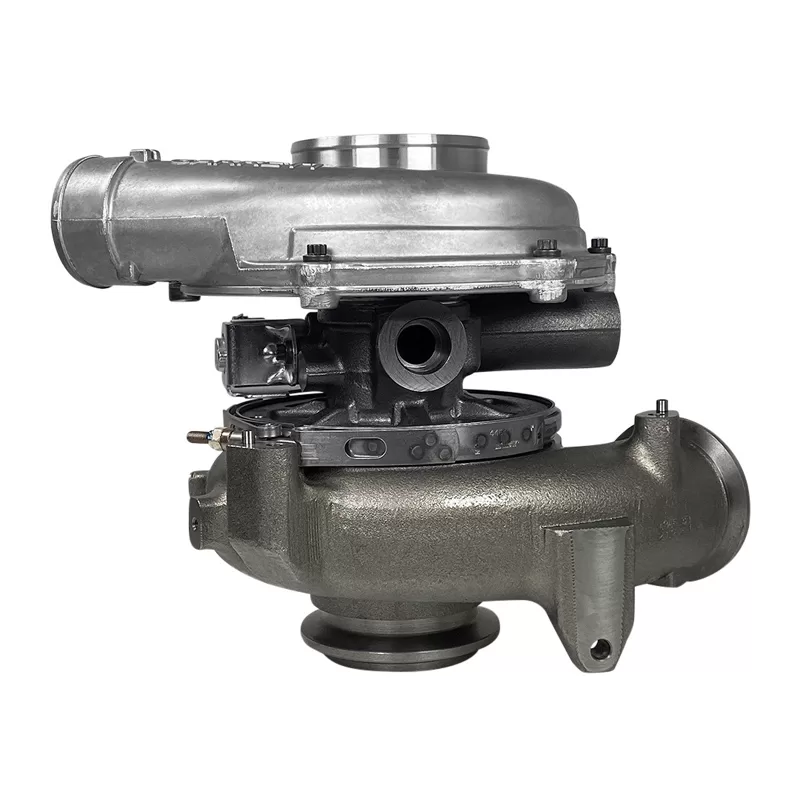

Garrett part number 743250-5024S is a new GT3782VA turbocharger for late 2004.5- Early 2005 Ford trucks, Excursions, and vans with the 6.0L Power Stroke diesel engine.

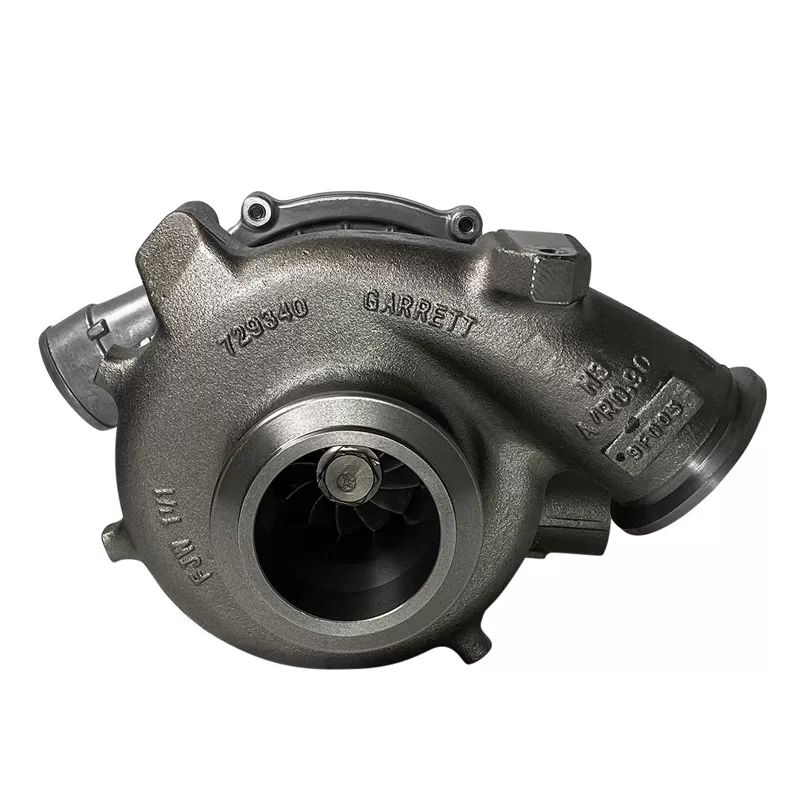

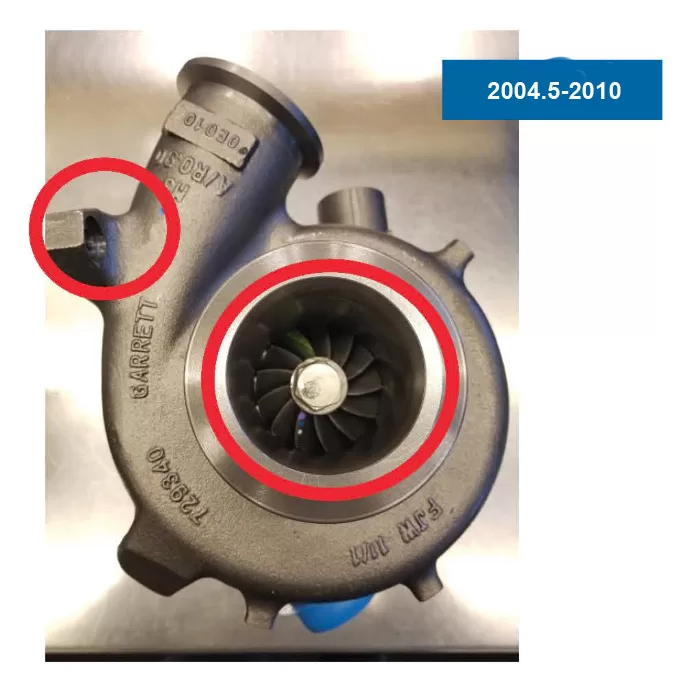

New late 2004 and early 2005 Ford 6.0 Diesel Power Stroke engines.  2005 engine serial numbers 6155638 through 6344932.  This turbo fits 2004 engines with the ICP Injection Control Pressure sensor mounted on the passenger side valve cover.  Compare the exhaust housing pictures to your turbo for proper identification on 2004 engines.

743250-5024S is used on pickup trucks, excursions, and vans with a build date prior to June 2025.  These turbochargers use a 59.12 / 82 mm compressor wheel and produces a slightly higher peak power.  This wheel is larger than the 56.81 / 82 mm compressor wheel used on the late 2005-2010 6.0L engines.  The change to the wheel was made to reduce surge and improve driving ability.  This turbo and the 743250-5025S can be interchanged back and forth without any need for tuning or hardware problems.

These brand-new turbos from Garrett for Ford 6.0 Power Stroke diesels are the highest quality available.  Because of the high wear characteristics inherent with these turbos, rebuilding high mileage units is cost ineffective.  Don’t settle for less!

• Genuine Garrett brand original equipment replacement unit.
• Contains all engineering updates for superior durability.
• New solenoid valve included.
• Installation gasket kit included.

No core required.

Replaces Navistar Part Numbers:

• 1832159C91
• 1845178C98
• 1854480C91

Replaces Ford Part Numbers:

• 4C3Z-6K682-CDRM
• 4C3Z-6K682-AARM
• 4C3Z-6K682-BA
• 4C3Z-6K682-ARM
• 4C3Z-6K682-CBRM
• 4C3Z-6K682-CCRM

Superseded Part Number:

• 743250-5013S

Cross-Reference Numbers:

100TBC514S
100TBC524
100TBC524S
1700250111
170-025-0111
1700251179
170-025-1179
1700251894
1700702633
170-070-2633
1832159C91
1843761C
1843761C91
1843761C92
1843761C93
1843761C94
1845178C94
1845178C95
1845178C98
184518C98
1845322C91
1846765C91
1846767C91
1854480C91
1854824C91
1858116C91
1876549C91
1877832C91
1877832C92
1877832C93
1882379C1
1882379C2
2T202
337-0038
4C349T428AE
4C349T482AE
4C3Z6K682A
4C3Z6K682AA
4C3Z6K682AARM
4C3Z-6K682-AARM
4C3Z6K682BA
4C3Z6K682BARM
4C3Z6K682CB
4C3Z6K682CBRM
4C3Z6K682CC
4C3Z-6K682-CC
4C3Z6K682CCRM
4C3Z-6K682-CCRM
4C3Z6K682CDRM
4C3Z-6K682-CDRM
500\047
500\049
500\490
5010115R96
57739900001
5773-990-0001
7356PP
7356-PP
7432500001
743250-0001
7432500002
743250-0002
7432500004
743250-0004
743250-0005
743250-0008
7432500013
743250-0013
7432500017
743250-0017
7432500020
743250-0020
7432500024
743250-0024
7432505001
743250-5001
7432505002
743250-5002
7432505004
743250-5004
7432505005
743250-5005
7432505008
743250-5008
7432505013
743250-5013
7432505013S
743250-5013S
7432505017
743250-5017
7432505020
743250-5020
7432505024
743250-5024
7432505024S
743250-5024S
7432509001
743250-9001
7432509002
743250-9002
7432509004
743250-9004
7432509005
743250-9005
7432509008
743250-9008
7432509013
743250-9013
7432509017
743250-9017
7432509020
743250-9020
7432509024
743250-9024
7432509024S
743250-9024S
743250-9025
8299738106
829-973-8106
A8370102R
AP90001
BBBD1004
D1004
DA2251334
DT4C3Z6K682CCR
DT4C3Z-6K682-CCR
DT600006
GAR 7432505013S
GAR 7432505024S
TBC514S
TC15RM
TC-15-RM
TC15-RM
TRA 7432505013
TRA 7432505013S
TRA 7432505024S
TRA7432505013
TRA7432505013S
TRA7432505024S
TS7432505004
TS743250-5004
TS7432505013
TS743250-5013
TS7432505017
TS743250-5017
TS7432509004R
TS743250-9004R
TS7432509013R
TS743250-9013R
TS7432509017R
TS743250-9017R
TUR0260202R
